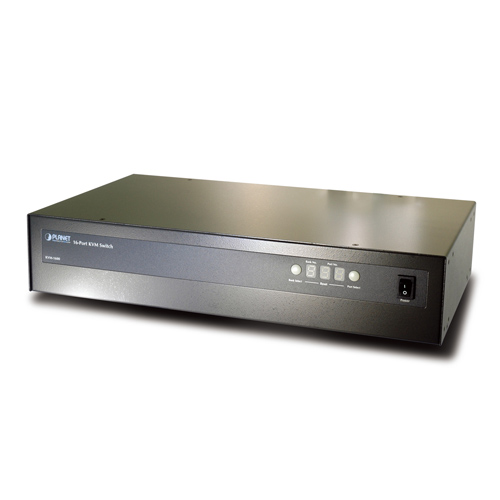

Planet 16-Port KVM Switch/KVM-1600 :: Detalle de Producto :: PLANET's KVM switches utilize advanced microprocessor emulation to intelligently manage each KVM port. This allows simultaneous boot-up of all the attached computers. Caps Lock, Num Lock and Scroll Lock status can also be saved for each computer. They support VGA, SVGA and MultiSync monitors at up to 1920 x 1440 resolutions.
Furthermore, in addition to computers with a PS/2 interface, iMAC, Power MAC and Sun Microsystems with only a USB port can also be connected through PLANET's USB-PS2 adapter and thus be controlled by a PS/2 keyboard and mouse.
With KVM-1600's Daisy Chain function, up to eight units (banks) can be daisy-chained together to control up to 128 PCs with a single console. Two buttons on the front panel allow you to quickly and easily select the switch (bank) and port. The on-screen display (OSD) feature of KVM-1600 provides a friendly interface for naming and selecting a specific PC , and eight character password protection and a search by computer name feature assists when managing a large number of computers
   • Supports multi-platform: DOS,
Win9x/NT/2000/ME/XP, Netware, Unix/Linux
• Supports iMac, Power Mac and Sun
Microsystems with USB port (requires USB-PS2
adapter)
• Auto scan mode
for monitoring PC
• Plug and play system configuration
• No software
required easy PC selection via Push button, and Hot key functions
• 19" rack
mount size design
• Daisy chain up to 7 additional units to control up to
120 computers from single
console
• OSD (On Screen Display) supported
visualize computer management
| Model |
KVM-1600 |
| Product |
| Computer Port |
16
|
| Console Port |
1
|
| Daisy Chain Port |
1
|
| Max computer connection |
128 (by Daisy Chain 8 KVM-1600)
|
| Computer Port Connector |
Keyboard: Mini DIN 6 pin Female
Mouse: Mini DIN 6 pin Female
Monitor:
HDDB 15 pin Female
|
| Console Port Connector (Daisy Chain
Port) |
Keyboard: Mini DIN 6 pin Female
Mouse: Mini DIN 6 pin Female
Monitor:
HDDB 15 pin Female
|
| On Screen Display |
Yes
|
| PC Selection |
OSD, Hot Key, Push Button
|
| Scan Interval |
5~99 sec.
|
| Key Emulation |
PS/2
|
| Mouse Emulation |
PS/2
|
| Video Resolution |
Up to 1920x1440
|
| Bandwidth |
200MHz
|
| Housing |
Metal
|
| Power Adpater |
DC 9V~12V, 1A
|
| Operating Temperature |
0~40 Degree C (32~104 Degree F)
|
| Storage Temperature |
-20~60 Degree C (-4~140 Degree F)
|
| Humidity |
0~80% RH non-condensing
|
| Dimension (W x D x H) |
410 x 172 x 44 mm
|
| Weight (kg) |
4.1
|
|
