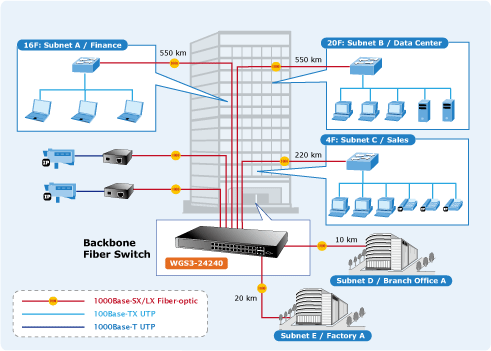

The PLANET WGS3-24240 Multi-Layer Switch is an essential Layer 3 functionality multimedia Switch which brings high-end security and traffic control to the edge of the network. The WGS3-24240 offers multi port fiber optical connective capability and helps to extend the coverage of Multi-Layer routing Services. With IP routing and multicast routing capabilities and flexible SFP interfaces, the WGS3-24240 is the ideal choice for the core layer of Telecoms, campuses, and enterprises that need long reach and stability of IP metro access networks.

Model	WGS3-24240
Hardware Specification
SFP / mini-GBIC slots	24 SFP interfaces, support 1000Base-SX / LX
10/100/1000Base-T Ports	4 RJ-45 Auto-MDI / MDI-X ports Shared with Port-11, Port-12, Port-23 and Port-24
Switch Architecture	Store-and-Forward
Switch Fabric	48Gbps / non-blocking
Switch Throughput	35.7Mpps
Address Table	16K MAC address table with Auto learning function
Layer 3 Routing Table	2048 entries
Buffer Memory	2Mbytes for packet buffer
Flow Control	Back pressure for Half-Duplex IEEE 802.3x Pause Frame for Full-Duplex
Jumbo Frame	9Kbytes
LED	Power, Link / Act, FDX / COL
Dimension (W x D x H)	440 x 350 x 44.5 mm, 1U height
Weight	5kg
Layer 3 function
IP Routing Protocol	Static Route, RIPv1 / v2, OSPFv2, IRDP, VRRP
Multicast Routing Protocol	IGMP, DVMRP, PIM-DM / SM
Routing Interface	Per Port / Per VLAN
Layer 2 function
Management Interface	Console. Telnet, SSH, Web, SSL, SNMP
Port Configuration	Port disable / enable Auto-negotiation 10/100Mbps full and half duplex mode selection Maximum frame size
Port Status	Display each port's speed duplex mode, link status, Flow control status. Auto negotiation status, trunk status
VLAN	IEEE 802.1Q Tagged Based VLAN ,up to 4094 VLAN groups GVRP protocol for VLAN management
Link Aggregation	Support 8 groups of 8-Port trunk support IEEE 802.3ad LACP
QoS	Traffic classification based on Port Number, 802.1p priority, DS / TOS field in IP Packet Policy-based DiffServ
Bandwidth Control	Egress Traffic Shaping
IGMP Snooping	Supports v1, v2 and v3 Maximum up to 255 multicast groups
Port Mirror	RX / TX / Both
Access Control List	IP-Based ACL / MAC-Based ACL Up to 100 entries
SNMP MIBs	RFC-1213 MIB-II RFC-2863 Interface MIB RFC-2665 EtherLike MIB RFC-1493 Bridge MIB RFC-2674 Extended Bridge MIB RFC-2819 RMON MIB (Group 1, 2, 3 and 9) RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB PLANET Private MIB
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3: 10Base-T IEEE 802.3u: 100Base-TX IEEE 802.3z: Gigabit SX / LX IEEE 802.3ab: Gigabit 1000T IEEE 802.3x: Flow Control IEEE 802.3ad: Port trunk with LACP IEEE 802.1d: Spanning tree protocol IEEE 802.1w: Rapid Spanning tree protocol IEEE 802.1s: Multiple Spanning Tree Protocol IEEE 802.1p: Class of service IEEE 802.1Q: VLAN Tagging IEEE 802.1x: Port Authentication Network Control
