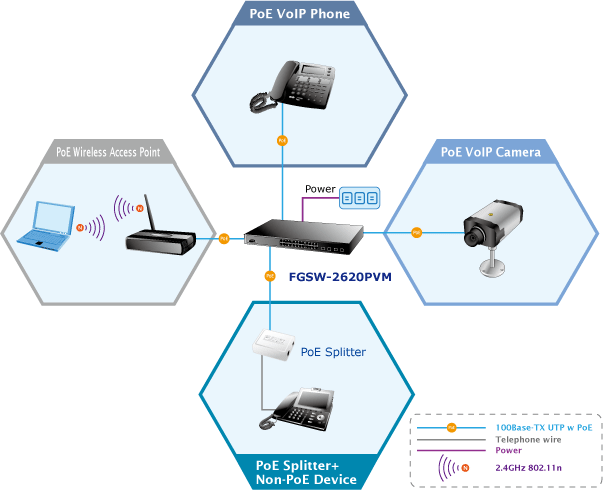

Planet 24-Port 10/100Mbps + 2- Gigabit TP/SFP Managed PoE Switch/FGSW-2620PVM :: Detalle de Producto ::  The PLANET FGSW-2620PVM PoE Switch features 802.3af Power over Ethernet (PoE) function, which optimizes the installation and safe power management of network devices such as wireless access points (AP), Voice over IP (VoIP) phones and IP Surveillance cameras. 802.3af PoE capabilities reduce installation costs of add-in network productivity devices. It frees the wireless AP deployment from restrictions of power outlet locations. With PoE features, power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time

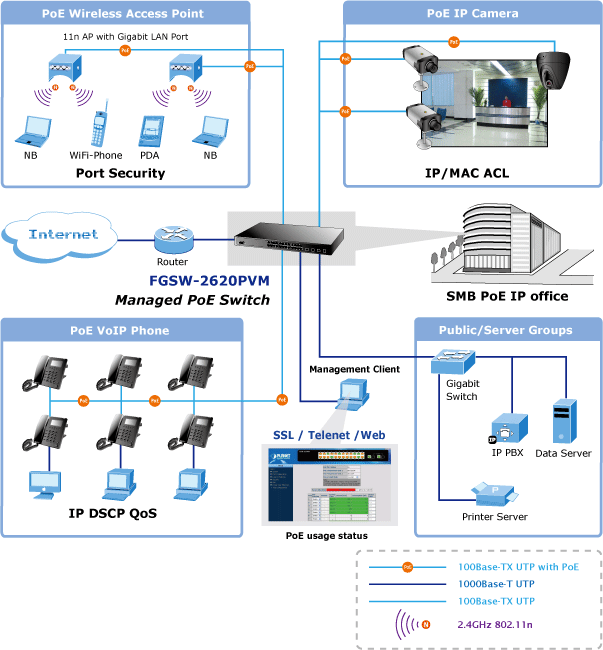

With the business office expansion, the additional telephones required could be installed in less cost via the implementation of PoE IP Telephony system than that of the traditional circuit wiring telephony system. PLANET FGSW-2620PVM PoE Managed Switch helps SMB to create an integrated data, voice, and powered network. PLANET 802.3af compliant IP Phones can be installed without the need of additional power cables because the power can be provided from the standard Ethernet cable connecting to the FGSW-2620PVM. PoE IP Phones and Analog Telephony Adapter work perfectly with the FGSW-2620PVM which injects power through the Ethernet cables and the IP DSCP priority of QoS feature improves the voice communicating. With FGSW-2620PVM, IP Telephony deployment becomes more reliable and cost effective, which helps SMB save tremendous cost when upgrading from the traditional telephony to IP Telephony communications infrastructure.

Key Features

Physical Port • 24-Port 10/100Mbps Fast Ethernet ports with PoE Injector • 2 10/100/1000Mbps TP and SFP shared combo interfaces • RS-232 male DB9 console interface for Switch basic management and setup • Reset button for system management Power over Ethernet • Complies with IEEE 802.3af Power over Ethernet End-Span PSE • Up to 24 IEEE 802.3af devices powered • PoE Power up to 15.4 Watts for each PoE port • Auto detect powered device (PD) • Circuit protection prevent power interference between ports • Remote power feeding up to 100m • PoE Management 　–Total PoE power budget control 　–Per port PoE function enable/disable 　–PoE Port Power feeding priority 　–Per PoE port power limit 　–PD classification detection Layer 2 Features • Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit 　Ethernet standard • Supports Auto-negotiation and Full-Duplex / Half-Duplex modes for all 10Base- 　T/100Base-TX and 1000Base-T ports • Auto-MDI/MDI-X detection for each RJ-45 port • Prevents packet loss Flow Control: 　–IEEE 802.3x Pause Frame flow control for Full-Duplex mode 　–Back-Pressure Flow Control in Half-Duplex mode • High performance of Store-and-Forward architecture, runt/CRC filtering eliminate 　erroneous packets to optimize the network bandwidth • Broadcast / Multicast / Unicast storm control • 8K MAC address table, automatic source address learning and ageing • VLANs 　–IEEE 802.1Q Tag-based VLAN 　–Port-Based VLAN 　–Q-in-Q tunneling 　–Up to 255 VLANs groups, out of 4041 VLAN IDs • Link Aggregation 　–up to 13 trunk groups 　–up to 8 ports per trunk group with 1.6Gbps bandwidth (Full Duplex Mode) 　–IEEE 802.3ad LACP (Link Aggregation Control Protocol) 　–Cisco ether-channel (Static Trunk) • Spanning Tree Protocol 　–STP, IEEE 802.1D (Classic Spanning Tree Protocol) 　–RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) • Port Mirroring to monitor the incoming or outgoing traffic on a particular port Quality of Service • 4 priority queues on all switch ports • Traffic classification: 　–IEEE 802.1p CoS 　–IP TOS / DSCP to 802.1p priority mapping 　–Port-Based priority • Strict priority and Weighted Round Robin (WRR) CoS policies • QoS and In / Out bandwidth control on each port Multicast • IGMP Snooping v1 and v2 • IGMP Snooping v2 fast leave • Querier mode support Security • IEEE 802.1x Port-Based network access control protocol • RADIUS users access authentication • L2 / L3 / L4 Access Control List (ACL) • MAC Filtering and Source IP-MAC / Port-Binding • Port Security for Source MAC address entries filtering Management • Switch Management Interface 　–Console / Telnet Command Line Interface 　–Web switch management 　–SNMP v1, v2c switch management 　–SSL switch management • DHCP client for IP address assignment • Built-in Trivial File Transfer Protocol (TFTP) client • Firmware upgrade via TFTP or HTTP • Configuration upload / download via TFTP or HTTP • Four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events) • SNMP trap for interface Link Up and Link Down notification • Ping function
