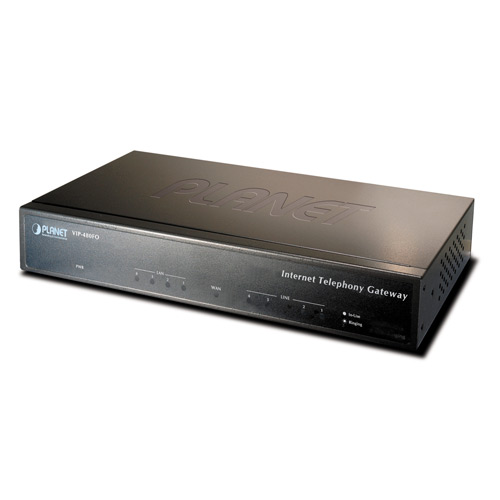

Planet 4-Port VoIP Gateway/VIP-480FO :: Detalle
de Producto :: With years of Internet telephony and router manufacturing experience, PLANET
proudly introduces the newest member of the PLANET VoIP gateway family to you:
the VIP-480/VIP-480FS/VIP-480FO.
The PLANET VIP-480 series VoIP Gateway
is fully both SIP and H.323 standard compliant residential gateway that provides
a total solution for integrating voice-data network and the Public Switched
Telephone Network (PSTN). It is not only provides high quality voice
communications, but also offers secure, reliable Internet sharing capabilities
for daily voice and Internet communications.
With advanced DSP processor
(TI) and cutting edge VoIP technology, the PLANET VIP-480 series are capable of
handling both SIP and the H.323 calls. With up to 4 registrations to the SIP
proxy or H.323 Gatekeeper, the VIP-480 serires are able to make calls to either
H.323 or SIP voice communication environment. The VIP-480 is equipped with a
four port Ethernet switch and built-in NAT router function that provides
Internet access using only one IP address; with these features, users can now
enjoy high quality voice calls and secure Internet access without interfering
with routine activities.
Meanwhile, the PLANET VIP series are designed
in comfort, ease-of-use with a sophisticated, and satisfaction for customers.
The VIP-480 not only inherits traditions of quality voice communications and
real-time fax data over IP networks, but the VIP-480 also eliminates the need of
human resource deployment in VoIP network. With optimized H.323/SIP
architecture, the PLANET VIP-480 is the ideal choices for P2P voice chat and
ITSP cost-saving solution, moreover, it also provide network-converting feature
to translate the packet network into traditional PBX system.
With
built-in PPPoE/DHCP/DDNS clients, up to 4 concurrent connections in VIP-480,
voice communications can be established in anywhere around the world. The PLANET
VIP-480 comes with intuitive user-friendly, yet powerful management interface
(web/telnet), that can dramatically reduce IT personnel resource, and complete
VoIP deployment in a short time, plus remote management capability, VoIP
administrators can monitor machine/network status, or proceeds
maintenance/trouble-shooting service via Internet browser or telnet session.
Besides, it provides voice channels status display and optimized packet voice
streaming over managed and public (Internet) IP networks.

|
Key Features
|
|
|
|
Network Features
•
Network Address Translation (NAT)
NAT allows multiple PCs to connect
to an Internet Service Provider (ISP) using a
single Internet access
account.
• Point-to-Point Protocol over Ethernet (PPPoE) Client Support:
If you are a DSL user, the router has a built-in PPPoE client for
establishing a DSL
link connection with the ISP. There is no need to install
a further PPPoE driver
on your computers.
• Smart QoS
The
smart QoS provides stable voice quality while user access internet from private
LAN to internet at the same time. This device would start suppressing
throughput
automatically when VoIP call proceed and keep full speed access
when there is no
VoIP traffic.
• DDNS(Dynamic Domain Name Server)
DDNS is a service that maps Internet domain names to IP addresses. It
allows you
to provide Internet users with a domain name (instead of an IP
Address) to access
your Virtual Servers.
• Virtual Server
Remote Users can access services such as the Web or FTP at your local
site via
public IP addresses can be automatically redirected to local
servers configured with
private IP addresses.
VoIP Features
• H.323 / SIP dual mode communication
• SIP 2.0 (RFC3261), H.323v4
compliant
• Peer-to-Peer / H.323 GK / SIP proxy calls
• Voice codec
support: G.711(A-law / u-law), G.729 AB, G.723 (6.3 Kbps / 5.3Kbps)
• Voice
processing: Voice Active Detection, DTMF detection, G.165/G.168 compliant
echo canceller, silence detection, FAX (T.38 / T.30) Mode Option.
•
Built in adaptive buffer that helps to smooth out the variations in delay
(jitter)
for voice traffic.
• Voice channels status display: This
function display each port status likes as
on-hook, off-hook, calling
number called number, talk duration, codec.
|
| Model |
VIP-480FO |
| Hardware |
| WAN |
1 x 10/100Mbps RJ-45 Port |
| LAN |
4 x 10/100Mbps RJ-45 Port |
| Voice |
4 x RJ-11 connection (4 x FXO) |
| Protocols and
Standard |
| Standard |
H.323 v2/v3/v4 and SIP (RFC 3261), SDP (RFC 2327), Symmetric RTP,STUN
(RFC3489), ENUM (RFC 2916), RTP Payload for DTMF Digits (RFC2833), Outbound
Proxy Support. |
| Voice Codec |
G.711 (A-law / u-law), G.729 AB, G.723 (6.3 Kbps / 5.3Kbps) |
| Fax Support |
T.30, T.38 |
| Voice Standard |
Voice activity detection (VAD)
Comfort noise generation
(CNG)
G.165/G.168 Echo cancellation
Dynamic Jitter Buffer |
| Protocols |
SIP 2.0 (RFC-3261), H.323, TCP/IP, UDP/RTP/RTCP, HTTP, ICMP, ARP, NAT, DHCP,
PPPoE, DNS |
| Advanced Function |
Virtual Server, Smart QoS, IP TOS (IP Precedence) / DiffServ, Build-in NAT
router function |
| Network and
Configuration |
| Management |
Web, Telnet |
| LED Indications |
System: PWR
WAN: 1, LAN/ACT
LAN: 4, LNK/ACT
Voice 4, In-Use/Ringing
|
| Dimension (W x D x H) |
260 x 130 x 40 mm |
| Operating Temperature/Humidity |
0~40 Degree C, 0~95% Humidity |
| Power Requirement |
12V DC |
| EMC/EMI |
CE, FCC Class B |
|
|
