Planet 802.11n USB2.0 MFP Print Server/FPS-1012N

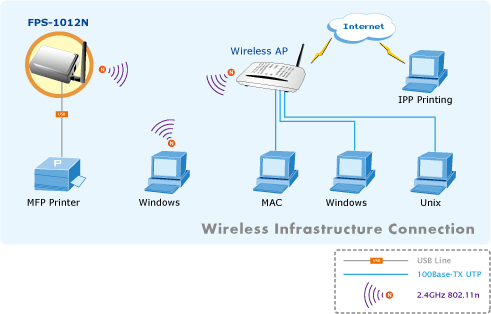

:: Detalle de Producto :: The PLANET new MFP print server, FPS-1012N, allows users to share their MFP
(Multi-Function Printer) to the wired or wireless network. Not only the printer,
but also the scanner, fax machine and card reader can be shared to your network
for use at the same time. With Windows based operation utility, users can get
the MFP to print and scan their documents, send a fax or reach the data from the
card reader of MFP via FPS-1012N. In addition, by using the Windows based
configuration program, configuration can be completed in minutes. Equipped with
USB 2.0 interface, the FPS-1012N provides the most compatibility to the newly
released MFP that built in USB 1.1 / 2.0 interface.

 Supports for most popular NOS
• MFP Server:
Win2000 SP4, WinXP SP3, Win Vista, Win7, Win2008, MAC
OS 10.4 and 10.5
• Print Server:
–UNIX, Linux: TCP/IP, LPD
–Windows:
LPR, IPP, TCP/IP and Raw printing protocols. (In Windows Vista, the
FPS-
1012N supports LPR printing protocol only.)
–Apple: TCP/IP (MAC OS
9 or above)
Auto-Sensing
Supports 10/100Mbps Auto-Nway,
Automatically Negotiates optimal mode, Ethernet 802.2, Ethernet
802.3
Auto MDI/MDI-X
Auto detects the connected cable type
while connecting to different LAN devices. It is capable of detecting the signal
and changing the transfer/receiving order on the cable
automatically
Easy Management
Intuitive management utility
provided for Windows XP/Vista and Widows 7 or Web-Base
Management
Supports Internet Printing Protocol (IPP)
FPS-1012N
can act as IPP (Internet Printing Protocol) Server, allowing your clients,
suppliers, and colleagues to operate your printers from anywhere on the
Internet. Windows IPP Client software is also supplied.
Supports Most
MFP
FPS-1012N supports most of the MFP of the market, such as HP, Canon,
EPSON, Lexmark, Samsung, Konica, Brother, Minolta and etc.
Supports
GDI printer
FPS-1012N supports GDI Interface. It can work with GDI
printer and share the host-based print to your network.
| Model |
FPS-1012N |
| General |
| Printer Connector |
1 x USB 2.0 (Female) |
| Ethernet Connector |
1 x 10/100Base-TX |
| LEDs |
3; LAN, ACT, WLAN |
| Protocol Support |
TCP/IP, HTTP, IPP, DHCP, LPR |
| Cabling Type |
10Base-T UTP Cat 3 or better
100Base-TX UTP Cat5 or better
|
| Wireless
Interface |
| Frequency |
2.4 to 2.4835 GHz (ISM Band) |
| Signal Type |
DSSS (Direct Sequence Spread Spectrum) |
| Modulation |
OFDM with BPSK, QPSK, 16QAM, 64QAM (11n)
OFDM with BPSK, QPSK, 16QAM,
64QAM (11g)
DSSS with BPSK, QPSK, CCK (11b)
|
| Ports |
1 x 10/100Base-TX (RJ-45)
1 x USB2.0 Port
|
| Antenna |
1 x Dipole Antenna |
| Antenna Gain |
2dBi |
| Output Power |
11n:15±1.5dBm
11g:15±1.5dBm
11b:17±1.5dBm
|
| Data Encryption |
WEP 64/128, WPA, WPA2 |
| Frequency band |
2.4 GHz ~2.484GHz |
| Channel |
FCC: 11 Channels (US, Canada)
ETSI: 13 Channels (Europe)
TELEC: 14
Channels (Japan)
|
| Data Rate |
11n (20MHz): MCS0-7, up to 72Mbps
11n (40MHz): MCS0-7, up to 150Mbps
11g: 54/48/36/24/18/12/9/6
11b: 11/5.5/2/1Mbps
|
| Environment
|
| Management |
Web |
| System Configuration |
Windows Base Utility, Web Browser |
| Dimension (W x D x H) |
80 x 56 x 24 mm |
| Weight |
65g |
| Operating Environment |
0~40 Degree C, 10~90% Humidity |
| Power Requirement |
DC 5V, 1A |
| EMC/EMI |
FCC, CE Class B |
|
|
