Planet 8-Port 10/100Mbps Fast Ethernet + 2 Gigabit TP/ SFP combo/SGSD-1022P :: Detalle de Producto :: The PLANET SGSD-1022P PoE Switch features 802.3af Power over Ethernet (PoE) function, which optimizes the installation and power management of network devices such as wireless access points (AP), Voice over IP (VoIP) phones and security video cameras. 802.3af PoE capabilities reduce installation costs of add-in network productivity devices. It frees the wireless AP deployment from restrictions of power outlet locations. With PoE features, power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time.

The PLANET SGSD-1022P is loaded with powerful traffic management and QoS features to enhance services offered by Service Providers. The functionality includes QoS features such as wire-speed Layer 4 traffic classifiers and bandwidth limiting applications that are particular useful for multi-tenant unit, multi business unit, Telco, or Network Service Provider. It also empowers the enterprises to take full advantages of the limited network resources and guarantees the best performance in VoIP and Video conferencing transmission.

The SGSD-1022P PoE Managed Switch supports IP stacking function that helps network managers to easily configure up to 36 switches in the same series via single IP address instead of connecting and setting each unit one by one. For efficient management, the SGSD-1022P is equipped with console, WEB and SNMP management interfaces. With its built-in Web-based management, the PLANET SGSD-1022P offers an easy-to-use, platform-independent management and configuration facility. It supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the SGSD-1022P can be accessed via Telnet and the console port. Moreover, the SGSD-1022P offers secure remote management by supporting SSL and SSH connection which encrypt the packet content at each session.

Application

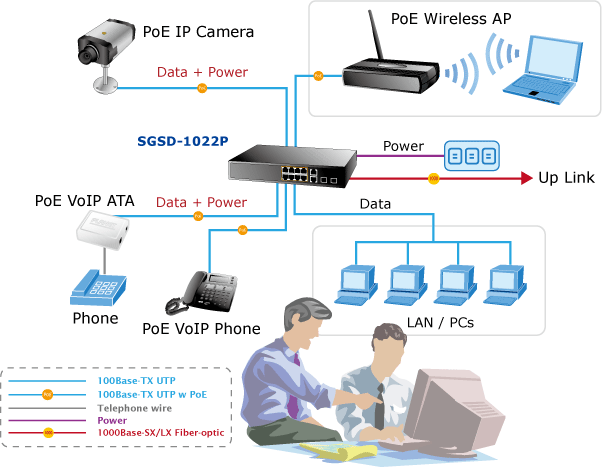

Providing up to 8 PoE, in-line power interface, the SGSD-1022P PoE Managed Switch can easily build a power central-controlled IP phone system, IP Camera system, or wireless AP group for the enterprises. For instance, 8 IP cameras or APs can be easily installed in the company for surveillance demands or build a wireless roaming environment in the office. Without the power-socket limitation, the PoE Switch makes the installation of cameras or WLAN AP more easily and efficiently.

With the business office expansion, the additional telephones required could be installed in less cost via the implementation of PoE IP Telephony system than that of the traditional circuit wiring telephony system. PLANET SGSD-1022P PoE Managed Switch helps enterprises to create an integrated data, voice, and powered network. PLANET 802.3af compliant IP Phones can be installed without the need of an additional power cable because the power can be provided from the standard Ethernet cable connecting to the SGSD-1022P. PoE IP Phones and Analog Telephony Adapter work perfectly with the SGSD-1022P equipments which inject power through the Ethernet cables.
With SGSD-1022P, IP Telephony deployment becomes more reliable and cost effective, which helps enterprises save tremendous cost when upgrading from the traditional telephony to IP Telephony communications infrastructure.
