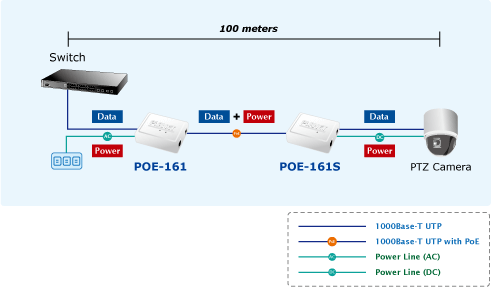

Planet Gigabit High Power over Ethernet Splitter 5V/12VDC/POE-161S :: Detalle de Producto :: Because of the capability of IEEE 802.3at Power over Ethernet pre-standard, the POE-161S only can be installed and co-work with the POE-161, the IEEE 802.3at Gigabit Power over Ethernet injector, and transform non-PoE equipment to IEEE 802.3at PoE application. For a place which is hard to find the power inlet, the POE-161 and POE-161S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch- screen Voice over IP (VoIP) telephones, and multi- channel wireless LAN access points installed on the top of the building or used in enterprise office or home.

Key Features

Interface 　• 2-Port RJ-45 interfaces 　　–1-Port PoE Power+ Data input 　　–1-Port Data output 　• 1 DC out plug connector PoE 　• Complies with IEEE 802.3at Power over Ethernet pre-standard, PD 　• Splits the 56V DC power over RJ-45 Ethernet cable into DC 5V/12V output 　• Up to 1 non-IEEE 802.3at devices powered 　• Auto-detect of PoE IEEE 802.3at equipments, protecting the devices from being damaged by incorrect installation 　• Adjustable two different output voltage options (5V/ 4.5A, 12V/ 2A) to fit various devices 　• Distance up to 100 meters 　• IEEE 802.3af Injector devices compatible Hardware 　• Plastic case 　• 5V / 12V DIP switch 　• LED indicators power input indication Standard Compliance 　• IEEE 802.3 10Base-T 　• IEEE 802.3u 100Base-TX 　• IEEE 802.3ab 1000Base-T 　• IEEE 802.3at Power over Ethernet pre-standard 　• FCC Part 15 Class A, CE

Model	POE-161S
Hardware Specification
Interface	"Data" Out Port：1 x RJ-45 STP "PoE (Power + Data)" Input Port：1 x RJ-45 STP DC Out Plug Connector：1
LED Indicator	System: PoE In x 1 (Green)
Network Cable	10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft) 100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft) 1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m)
Data Rate	10/100/1000Mbps (vary on Ethernet device attached)
DIP Switch	5V DC / 12V DC output voltage
Dimension (W x D x H)	95 x 70 x 25 mm
Weight	111g
Number of device can be powered	1
Power over Ethernet
PoE Standard	IEEE 802.3at Gigabit Power over Ethernet pre-standard / PD
Standards Conformance
Standards Compliance	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at Power over Ethernet pre-standard
Regulation Compliance	FCC Part 15 Class A, CE
Environment
Operating Temperature	0 ~ 50 Degree C
Storage Temperature	-10 ~ 70 Degree C
Humidity	5 ~ 95% (Non-condensing)
