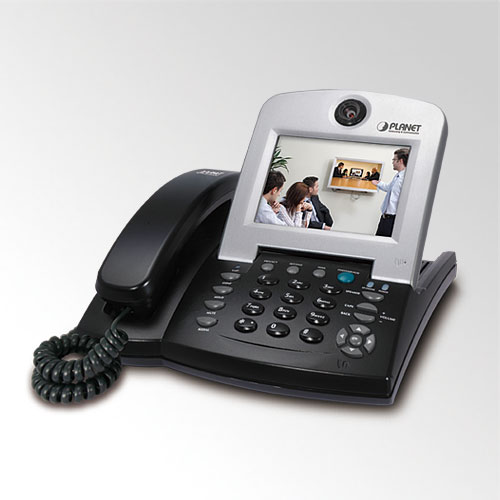

Planet Internet Video Conferencing Phone/ICF-1601
:: Detalle de Producto :: Lo ultimo planeta de productos de videoconferencia,
ICF-1601, te ofrece una experiencia de video conferencia viva a través de Internet.
Ni el PC ni la cámara web complejas se requiere para las comunicaciones de vídeo
por Internet. Además, el ICF-1601 tiene incorporado un monitor de 5 "LCD
en un ideal de teléfono factor de forma para uso de escritorio.

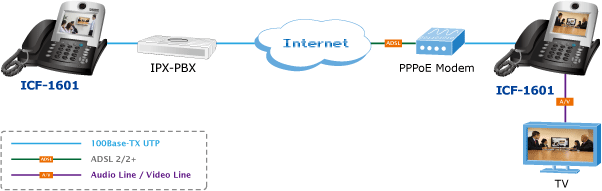

El ICF-1601 es compatible con el estándar SIP,
lo que le trae una experiencia de conferencia sin problemas con otros sistemas
compatibles con SIP de video conferencia, gateway de voz, teléfonos IP, ATA
y el sistema de PBX IP. Con el servidor proxy SIP y el apoyo MCU, el Planeta
ICF-1601 hace que las comunicaciones rápida y rentable posible para usted y
sus socios de negocios.
El ICF-1601 tiene múltiples entradas de vídeo
que se puede utilizar para conectarse a cámaras exteriores para reuniones de
grupos y / o una cámara de documentos para mostrar los documentos detallados
o fotografías. Con un máximo de 30 fps, de imagen y calidad de sonido, Internet
Video Phone PLANET conferencia le ofrece una experiencia de comunicación superior,
a través de Internet.
|
Key Features
|
|
|
|
• SIP version 2 (RFC 3261)
compliant • 5” Color TFT-LCD display with video / audio output function •
Personalized phone ring tone • Supports frame rate up to 30 fps •
User-friendly GUI Management • Supportd H.264 Video Codec and G.711 and
G.729A/B Audio Codec • Compatible with SIP 2.0 Proxy server and peer to peer
mode • Built-in High Quality CMOS Camera • Superior voice quality with
Automatic Gain Control(AGC) and Acoustic Echo Cancellation(AEC) support •
Digital photo frame support for image browsing |

| Model |
ICF-1601 |
| Hardware |
| Port |
2 x 10/100Mbps RJ-45 ports |
| Camera |
CMOS module, 300K pixels QCIF, 30fps |
| USB |
1 USB 2.0 ( For connecting with USB flash disk) |
| Audio / Video Input |
1 telephone handset 1 built-in microphone
|
| Audio / Video Output |
1 built-in 5” TFT LCD, angle adjustable 1 pair RCA Audio/Video
output 1 built-in speaker
|
| Protocols and
Standard |
| Standard |
SIP2.0 (RFC 3261), and supports Outbound Proxy Configuration |
| Video Standard |
H.263, H.264 |
| Audio Standard |
G.711a/u and G.729A/B |
| Internet protocol |
TCP/IP, UDP, RTP/RTCP |
| Echo cancellation |
G.167 |
| LAN standard |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet
|
| Access Mode |
Static IP, DHCP and PPPoE |
| Phone
Features |
| Keys |
1 Speakerphone Key 1 Volume Up & Down keys 1 Conference key 1
Hold key 1 Mute key 1 Redial key 1 Privacy key 1 Setting key 1
Mail key 1 Phone book key 12 Numerical keys |
| Audio Features |
Silence Suppression Comfort noise generation(CNG) In-band DTMF &
Out-of-band DTMF (RFC 2833) Call progress tone generation Acoustic Echo
Cancellation Dynamic Jitter buffer Three-way audio
conferencing
|
| Video Features |
2-Way Video Call PIP(Picture in Picture) LCD Brightness
Adjustment LCD Contrast Adjustment LCD/TV Display Switch Video Privacy
(Audio Only) Video Mute Remote Video Display On/Off
|
| Message & Configuration
Service |
Address Book Phone setting Network setting Call records Local
Clock setting Digital Photo Frame
|
| Network and
Configuration |
| Access Mode |
Static IP, DHCP and PPPoE |
| Management |
LCD GUI |
| Dimension (W x D x H) |
216 x 206 x 180 mm |
| Operating Environment |
0°~50 Degree C, 10~85% humidity |
| Power Requirement |
12V DC, 1.5A |
| EMC / EMI |
FCC, CE Class B | |
| |
|
