Planet SGSW-2840P series PoE Switch 24/SGSW-2840P :: Detalle de Producto :: The PLANET SGSW-2840P series PoE Switch provides 24 10/100Mbps Power-over-Ethernet (PoE, IEEE 802.3af compliant) ports which optimize the installation and power management of network devices such as wireless access points (AP), Voice over IP (VoIP) phones, and security video cameras. The PoE capabilities also help to reduce deployment costs for network devices like the wireless AP as a result of freeing from restrictions of power outlet locations. Power and data switching are integrated into one unit and delivered over a single cable. It thus eliminates cost for additional AC wiring and reduces installation time.

• 802.3af Power over Ethernet
• 802.1Q VLAN
• IGMP Snooping
• SNMP and SNMP Trap
• Access Control List
• 802.1X Authentication / RADIUS
• SSH / SSL
• 802.1s Multiple Spanning Tree
• Advanced QoS

PLANET SGSW-2840P series is loaded with powerful traffic management and QoS features to enhance services offered by Service Providers or Telco. The functionality includes QoS features such as wire-speed Layer 4 traffic classifiers and bandwidth limiting applications that are particular useful for multi-tenant unit, multi business unit, Telco, or Network Service Provider. It also empowers the enterprises to take full advantages of the limited network resources and guarantees the best performance in VoIP and Video conferencing transmission.

Application

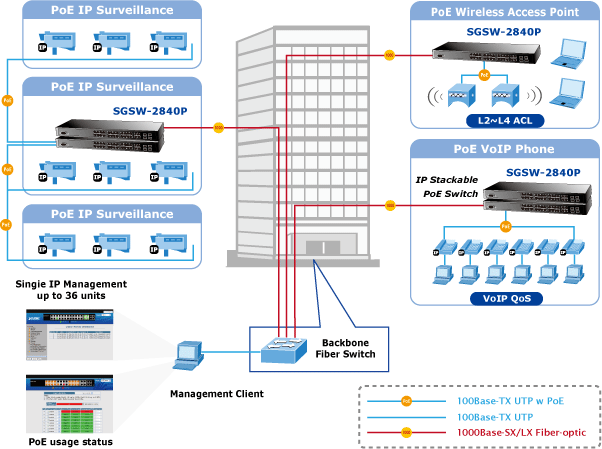

Providing up to 24 PoE, in-line power interface, the SGSW-2840P series PoE Switch can easily build a power central-controlled IP phone system, IP Camera system, AP group for the enterprise. For instance, 24 IP cameras / APs can be easily installed in the company for surveillance demands or build a wireless roaming environment in the office. No need to worry about the power outlet, the SGSW-2840P series makes the installation of IP cameras or WLAN AP more easily and efficiently.

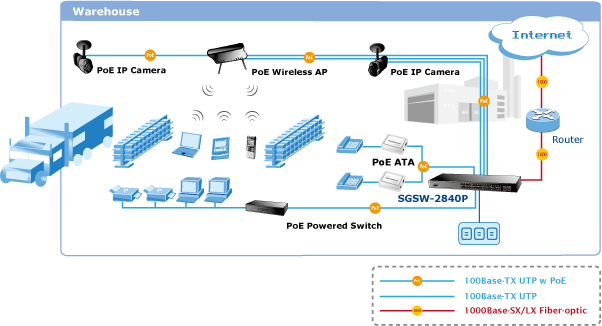

While video surveillance system becomes more and more important for visible security in the factory or warehouse, the IP cameras with PoE function would be a lot helpful for the surveillance deployment when the power outlet not easily found in the ceiling or in the outdoor. For example, in the factory operation or in the warehouse storage security, the PoE IP camera can be installed anywhere when needed regardless of the restrictions of power outlet location. With the PoE Switch as the central control manager and offering remote power monitoring via Web interface or SNMP trap and SNMP monitoring, the manager can get the PoE devices status and alert immediately. The PoE IP cameras could also be controlled remotely, which increases the administrator management efficiency and improve the productivity.
