Planet Wireless VPN Firewall Router/VRT-402N
:: Detalle de Producto :: The PLANET VRT-402N is an 802.11n compliant Wireless VPN Firewall Router
designed for users sharing Internet connection to LAN and wireless LAN at the
same time.
Wireless Capabilities
With IEEE 802.11n technology
backward compatible with 802.11b/g, the VRT-402N supports not only AP mode, but
also Bridge (AP disable / Repeater AP Enabled), Universal Repeater and WISP
modes. It provides more flexibility for users to establish their wireless
network. The 802.11n technology empowers the wireless bandwidth up to 150Mbps in
network access.
Secured VPN Connections
The VRT-402N provides
complete data security and privacy for access and exchange of the most sensitive
data. It makes the wireless LAN connection more secure, flexible, and capable by
its full VPN capability that includes built-in IPSec VPN function with DES /
3DES / AES encryption and MD5/SHA-1 authentication, PPTP and L2TP server /
client mechanism.
Full Featured NAT Router
Support
Furthermore, the VRT-402N integrates user access control and SPI
(Stateful Packet Inspection) firewall protection to perform high efficiency and
extensive protection for your network. The Virtual Server and DMZ function
supported enable you setup your servers in the Intranet and still provide
services to the Internet users. Not just for wired Internet connection, when the
VRT-402N is in the WISP (Wireless Internet Service Provider) mode, its Wireless
Interface will be turned into a WAN connection port making the Internet
connection Wirelessly

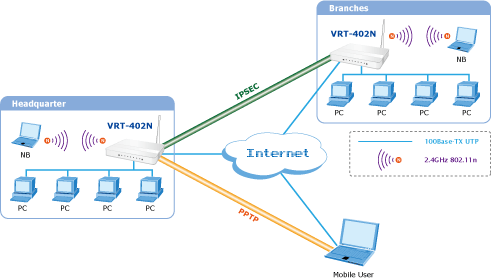

Application
The VRT-402N WAN port can be connected to the Internet through either an xDSL or
Cable Modem, and acts as a regular router (NAT disabled and static route) to
route the network traffic to a specific destination host. With the assistance of
a DDNS client, SOHO users with a dynamic IP may build their own websites and ftp
servers.
The VRT-402N provides advanced features including add-on virtual
servers, special applications, UPnP and DMZ supports to enable users enjoy the
trouble-free Internet communication. The IPSEC VPN also makes the private tunnel
over Internet in a secured way toward the business.
Key Features
Router / NAT Features
•
Access Private LAN Servers from the Public Network
• Equipped with four LAN
ports (10/100M) and one WAN port (10/100M), Auto-MDI/MDI-X supported
•
Supports DHCP Server
• System status monitoring includes Active DHCP Client,
Security Log and Device/Connection Status
• Web-Based GUI and Wizard setup
for easy configuration
• Remote Management function allows configuration and
upgrades from a remote site
• Supported Internet types: Dynamic / Static IP
/ PPPoE / PPTP / L2TP
• Supports UPnP function
Firewall / Security
Features
• MAC / IP filter access control, URL blocking ; SPI firewall +
DoS prevention protection
• Built in NAT firewall
• Predefined /
User-defined service database
• Enable/disable VPN pass-through
VPN
Features
• Site-to-site / Client-to-VPN gateway connection
capability
• IKE Keying Methods: Auto (Pre-shared Key), Manual Keying
•
Authentication: MD5/SHA-1
• Encryption: DES/3DES/AES
• Adjustable IKE SA
Life time
• PPTP VPN tunnels : 10
• IPsec VPN tunnels :
25
Wireless Features
• IEEE 802.11n wireless technology
compliant with 802.11b/g standard
• Supports Wi-Fi Protected Setup (WPS)
•
Advanced security: 64/128-bit WEP, WPA –TKIP(PSK), WPA2-AES(PSK), 802.1x
•
Max. WDS mode link allowed up to 4 sets
• Multiple SSID (Two SSID)and hidden
SSID broadcasting
• Multiple operating modes: AP, Bridge, Universal Repeater
and WISP
| Model |
VRT-402N |
| Hardware |
| Standard |
IEEE 802.11b/g/n
IEEE 802.3u
|
| Signal Type |
802.11b mode: DSSS
802.11g mode: OFDM
802.11n mode: OFDM,
MIMO
|
| Modulation |
802.11b: DBPSK, DQPSK, CCK
802.11g: BPSK, QPSK, 16QAM, 64QAM
802.11n:
BPSK, QPSK, 16QAM, 64QAM
|
| WAN Port |
1 x 10/100Base-TX, Auto-MDI/MDI-X |
| LAN Port |
4 x 10/100Base-TX, Auto-MDI/MDI-X |
| Antenna Connector |
1 x Detachable dipole 2dBi Dipole Antenna |
| LED Indicators |
PWR* 1, WLAN* 1, WAN * 1, LAN * 4 |
| Data Encryption |
64 bit / 128 bit WEP, WPA-PSK, WPA, WPA2, 802.1x encryption |
| Output Power |
802.11b: 17 dBm
802.11g: 15 dBm
802.11n: 15 dBm
|
| Data Rate |
802.11b: 11/5.5/2/1Mbps
802.11g: 54/48/36/24/18/12/9/6Mbps
802.11n:
|
MCS Index |
HT20 |
HT40 |
|
Data rate (Mbps) @ 400ns GI |
|
0 |
7.2 |
15.0 |
|
1 |
14.4 |
30.0 |
|
2 |
21.7 |
45.0 |
|
3 |
28.9 |
60.0 |
|
4 |
43.3 |
90.0 |
|
5 |
57.8 |
120.0 |
|
6 |
65.0 |
135.0 |
|
7 |
72.2 |
150.0 |
|
| Receiver Sensitivity |
802.11n 20/40MHz MCS7, 10% PER, -67±2dBm
54Mbps OFDM, 10% PER,
-72±2dBm
11Mbps CCK, 8% PER, -88±2dBm
|
| Software |
| Router Feature |
• Access Private LAN Servers from the Public Network
• Equipped with four
LAN ports (10/100Mbps) and one WAN port
(10/100Mbps)
• Supported
Internet types: Dynamic / Static IP / PPPoE / PPTP /
L2TP
• 802.1D
(Spanning Tree Protocol)
• DHCP Server / Client
• UPnP and DDNS
• DMZ
and Virtual Server
• SNTP
• Static Routing
|
| Wireless Feature |
• 802.11n wireless technology compliant with 802.11b/g standard
•
Supports Wi-Fi Protected Setup (WPS)
• Advanced security: 64/128-bit WEP, WPA
–TKIP(PSK), WPA2-AES
(PSK), 802.1x
• Max. WDS mode link allowed up to 4
sets
• Multiple SSID (Two SSID) and hidden SSID broadcasting
|
| VPN |
• Site-to-site / Client-to-VPN gateway connection capability
• IKE Keying
Methods: Auto (Pre-shared Key), Manual Keying
• Authentication:
MD5/SHA-1
• Encryption: DES/3DES/AES
• Adjustable IKE SA Life time
•
PPTP VPN tunnels : 10
• IPsec VPN tunnels : 25
|
| Session |
15000 |
| Security |
• Built-in NAT Firewall
• MAC / IP/ Port Filtering
• Content
Filtering
• SPI Firewall support
• Password protection for system
management
|
| Management |
• Web-Based configuration
• System status monitoring includes Active DHCP
Client, Security
Log and Device / Connection Status
• Web-Based GUI and
Wizard setup for easy configuration
• Remote Management function allows
configuration and upgrades
from a remote site
|
|
|
