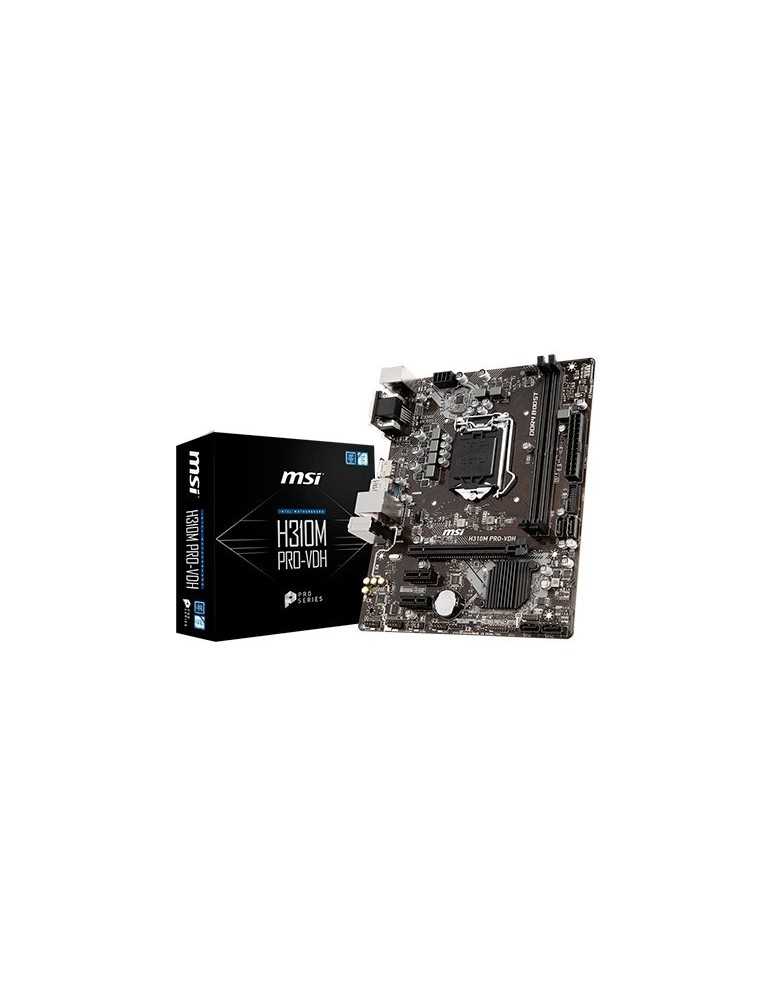

MSI H310M PRO SOCKET 1151 2XDDR4 4XSATA VGA HDM 911-7C09-013

$100.00

MSI H310M PRO SOCKET 1151 2XDDR4 4XSATA VGA HDM 911-7C09-013

Product Description

MSI H310M PRO SOCKET 1151 2XDDR4 4XSATA VGA HDM 911-7C09-013

MSI H310M PRO SOCKET 1151 2XDDR4 4XSATA VGA HDM 911-7C09-013

Marca Msi



Part Number 911-7C09-013/010/019



Cpu Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Chipset Intel® H310 Chipset
Memoria 2 x DDR4 memory slots, support up to 32GB

Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)1

Supports DDR4 2666/ 2400/ 2133 (by XMP OC)1

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Gráficos 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz

1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz

1 x HDMI™ port, supports a maximum resolution of 4096×2160@30H

Audio 7.1-Channel High Definition Audio
Lan 1 x RTL8111H Gigabit LAN controller
Ranuras De Expansión 1 x PCIe 3.0 x16 slot

2 x PCIe 2.0 x1 slots

Conectores 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)

1 x Clear CMOS jumper

2 x Front panel connectors

1 x Serial port connector

1 x TPM module connector

1 x Chassis Intrusion connector

1 x Front panel audio connector

1 x 4-pin CPU fan connector

1 x 4-pin system fan connector

Panel Trasero E/s PS/2 Combo Port

VGA Port

HDMI Port

USB 3.1 Gen1

LAN Port

HD Audio Connectors

USB 2.0 Port

DVI-D Port

USB 2.0 Port

Formato m-ATX Form Factor

8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)

Almacenamiento 4 x SATA 6Gb/s ports



Supports Intel® Rapid Storage Technology
