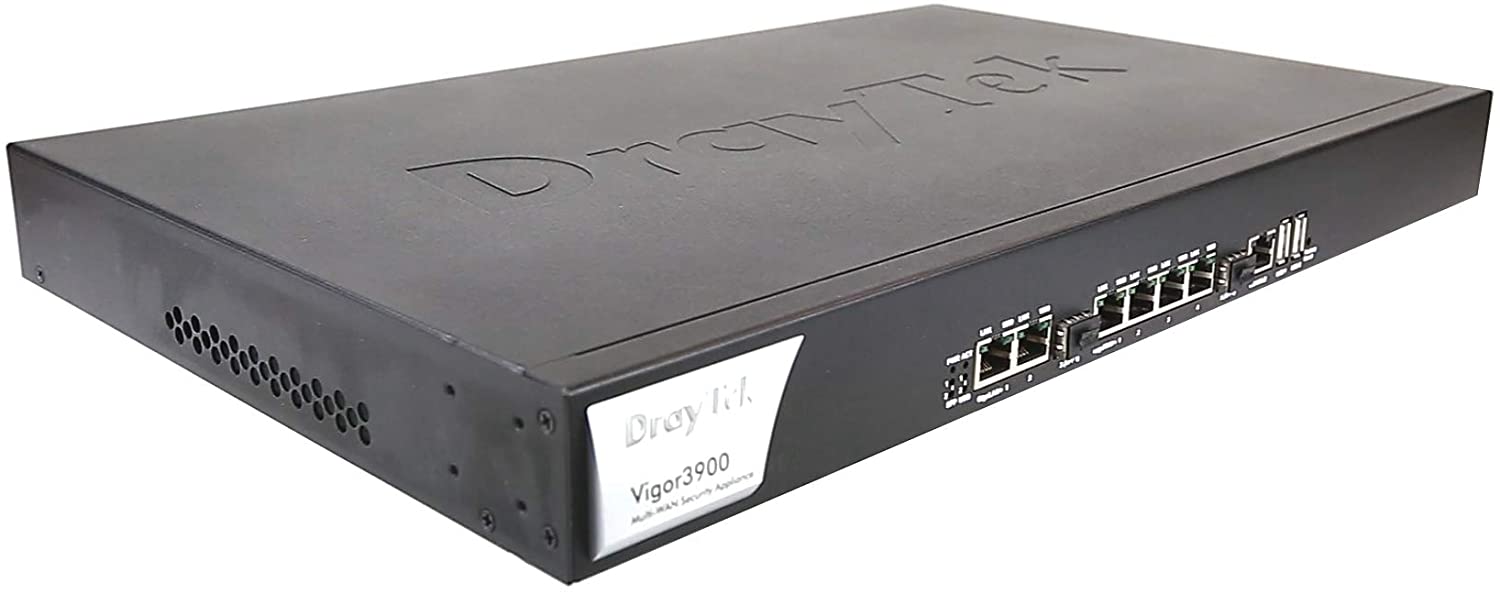

| Especificaciones Tecnicas del Vigor3900series |
| Hardware |
2 x 10/100/1000M Base-TX LAN switch, RJ-45 |
| 1 x active fiber (SFP) slot |
| 4 x 10/100/1000M Base-TX WAN switch, RJ-45 |
| 1 x active fiber (SFP) slot |
| 1 x console, RJ-45 |
| 1 x factory reset button |
| 2 x USB host 2.0 |
| WAN Protocol |
Ethernet |
PPPoE, PPTP, DHCP client, static IP, L2TP*, Ipv6 |
| Multi WAN |
Outbound policy based load balance |
| 4 dedicated Ethernet WAN ports (10/100/1000Mbps) and 1 active fiber (SFP) slot. |
| WAN fail-over o load-balanced. |
| Redundancy. |
| By WAN interfaces traffic volume. |
| By fixed VPN connection. |
| Auto-detect line status. |
| Service/IP based preference rules or auto-weight. |
| Bandwidth on demand |

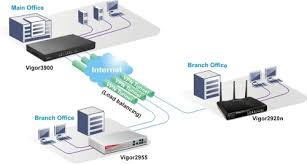

| VPN |
Protocols |
PPTP, IPSec, L2TP, L2TP over IPSec. |
| Up to 500 connections simultaneously |
| VPN trunking |
VPN load-balancing and VPN backup. |
| VPN throughput |
760Mbps. |
| NAT-traversal (NAT-T)VPN over routes without VPN pass-through. |
| PKI certificate, Digital signature (X.509). |
| IKE authentication, Pre-shared key; IKE. |
| AuthenticationHardware-based, MD5, SHA-1. |
| Encryption |
MPPE and hardware-based AES/DES/3DES. |
| RADIUS client |
Authentication for PPTP remote dial-in. |
| DHCP over IPSec* |
| GRE over IPSec |
| Dead Peer Detection (DPD) |
| No additional client or remote site licensing required. |
| Industrial-standard interoperability |
| SSL VPN |
Allow users to use a web browser for secure remote user login tunnel mode, application mode, proxy mode |
| Support 200 SSL tunnels* |
| Content filter |
IM/P2P blocking, Java applet, cookies, active X, compressed, executable, multimedia file blocking.
Web content filter |
| Web content filter, Dynamic URL filtering database. |
| Time schedule control* |
| Firewall |
Stateful Packet Inspection (SPI) |
| Multi-NAT |
| Port redirection |
| DMZ host |
| Policy-based IP packet filter |
| DoS/DDoS prevention |
| IP address anti-spoofing |
| Notification, E-mail alert* and logging via syslog. |
| Bind IP to MAC address |
| System management |
Web-based user interface (HTTP) |
| Quick start wizard |
| User management |
| CLI(Command Line Interface, Telnet/SSH) |
| DHCP client/relay/server |
| Dynamic DNS |
| Administration access controlT |
| Configuration backup/restore |
| Built-in diagnostic function, Dial-out trigger, routing table, ARP cache table, DHCP table, NAT sessions table, data flow monitor, traffic graph, ping diagnosis, trace route. |
| NTP client/call scheduling |
| Tag-based VLAN (802.1Q) |
| Firmware upgrade via TFTP/HTTP |
| Remote maintenance, Telnet/SSL, SSH (with password or public key), browser (HTTP/HTTPS), TFTP or SNMP, firmware upgrade via HTTP or TFTP. |
| Logging via syslog |
| SNMP management via SNMP v1/v2, MIB II. |
| VigorACS SI Centralized Management |
TR-069 based |
| Certificate management |
Advance encrypted method, A pair of public/priviate key for encryption/decryption. |
| Comprehensive Certificate Authentication |
Trusted CA / Local Certificate / CA server. |
| Bandwidth management |
Bandwidth management |
| Bandwidth reservation |
| DiffServ codepoint classifying |
| Individual IP bandwidth/session limitation |
| User-defined class-based rules |
| QoS, Ingress/Egress Filter Rules monitor both LAN/WAN packets / 8 priority level setting. |
| Routing functions |
Router, IP and NetBIOS/IP-multi-protocol router. |
| Advanced routing and forwarding |
| DNS cache/proxy. |
| DHCP client/relay/server. |
| NTP |
| Dynamic routing, Rip v.2 |
| Static routing |

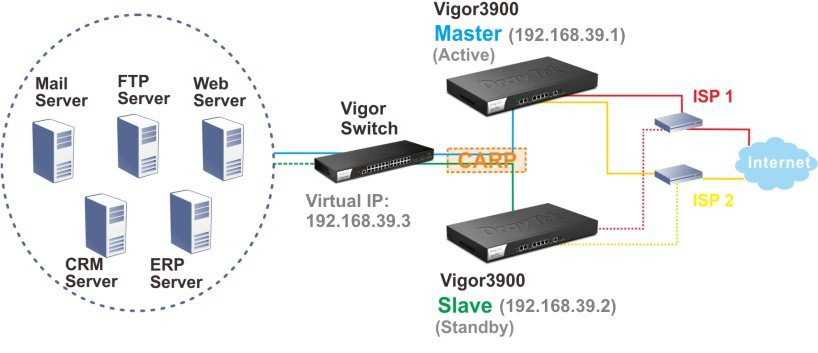

| High availability |
CARP Common address redundancy protocol. |
Enhanced security with encrypted packet. |
| Support |
Warranty |
2-year limited warranty, technical support through e-mail and Internet FAQ/application notes. |
| Firmware upgrade |
Free firmware upgrade from Internet. |
| Declaration of conformity |
|
| Temperature |
Operating : 0°C ~ 45°C |
| Storage : -25°C ~ 70°C |
| Humidity |
10% ~ 90% ( non-condensing ) |
| Max. Power |
10 Watt |
| Dimension |
L 443 * W 280 * H 44 ( mm ) |
| Power |
DC 15V / 1.34A |
